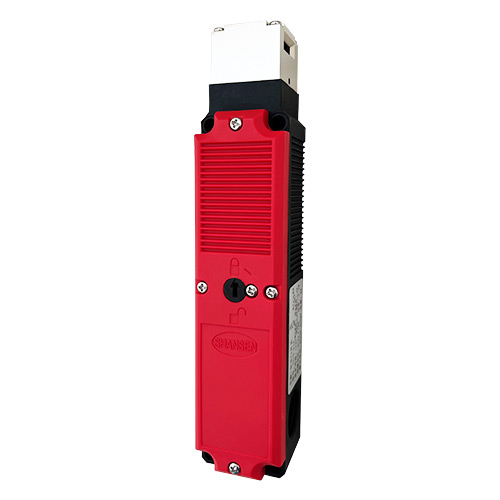

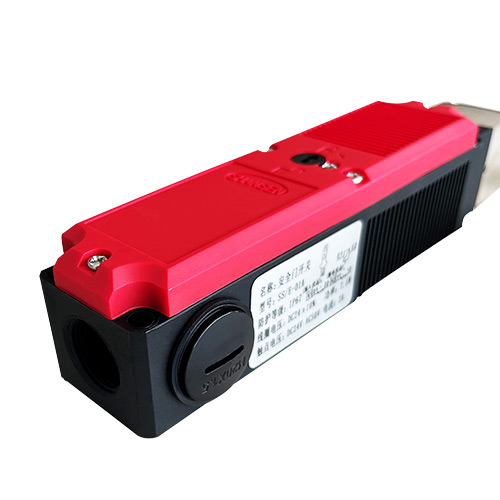

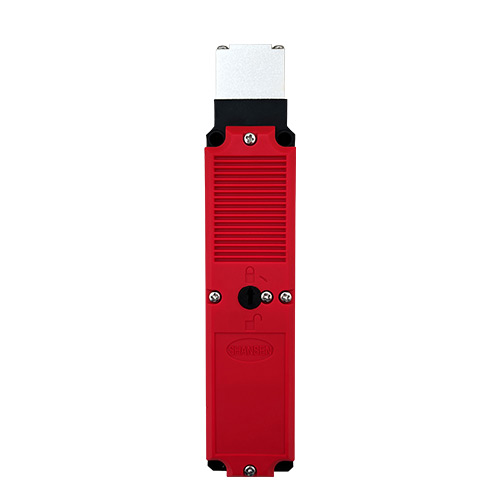

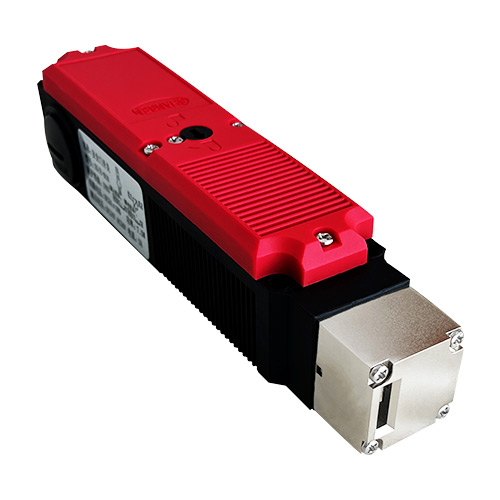

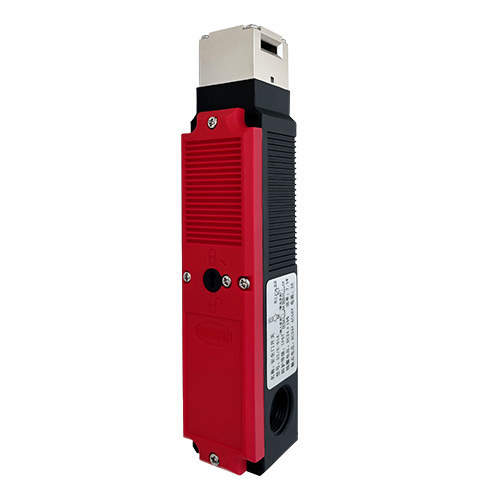

Safety Door Switch SS/E-01A
Designed according to national standards, the safety door switch is mainly used for closing the door and starting up mechanical equipment. That is to say, if you want to start the machine, you must close the equipment protection door. The switch signal is used to detect whether the protection door is closed to determine whether the equipment can be turned on, thereby providing safety protection for the operator.
Feature Description:
- Metal switch head for 4-way adjustment
- Five plug types optional
- With manual unlocking mechanism

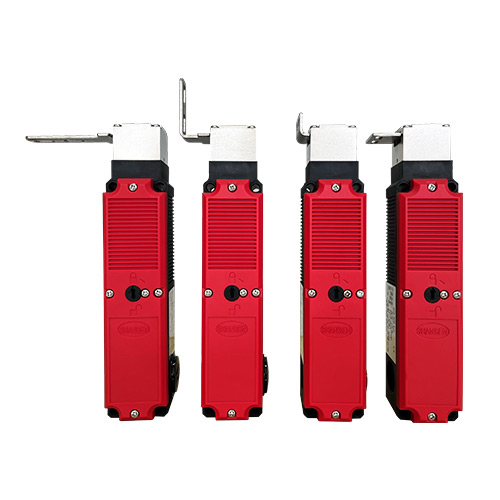

- Outlet method in 3 directions optional
- Locking method-Energized Unlocking

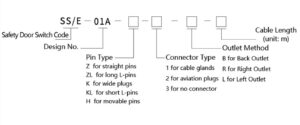

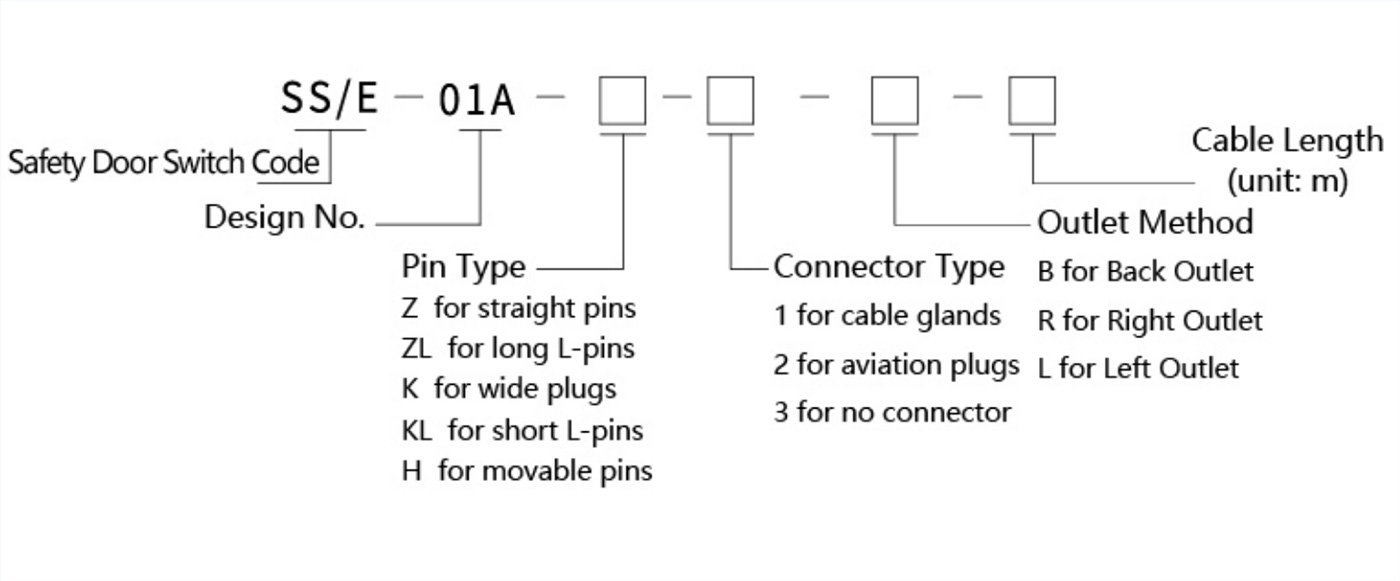

Model Description
Contact Capacity
| Rated Voltage | 30V | 250V | ||
| Rated Current |
AC |
Resistive load (AC-12) | – | 4A |
| Inductive load (AC-15) | – | 2A | ||
|
DC |
Resistive load (DC-12) | 2A | 0.8A | |
| Inductive loads (DC-13) | 1A | 0.4A | ||
Solenoid Coil
| Rated voltage | DC24V | +10%
-15% |
| rated current | 0.4A | |
| Insulation class | Level B | |
Performance Specifications
| Production standard | T/SDMTGM0007-2020 |
| Operating environment | Better than pollution level 3 |
| Ambient temperature | -5~40℃ |
| Relative humidity | 45~80% |
| Protection class | IP67 (without induction port) |
| Mechanical service life | Not less than 1 million times |
| Electrical service life | Not less than 100,000 cycles (AC-12 250V 4A) |
| Not less than 1 million times (24V AC/DC 100mA) | |
| Tensile strength | 2000N |
