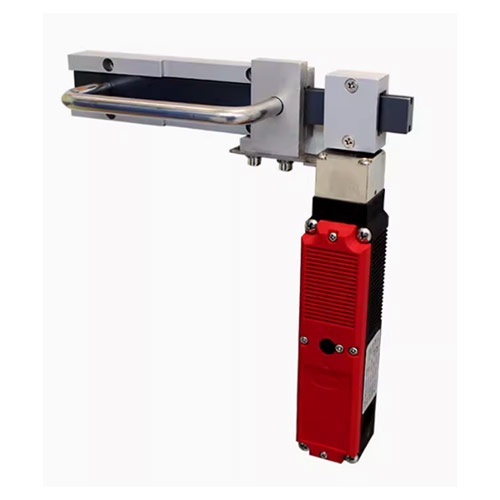

Safety Door Switch SS/E-08A
Characteristics
- Aluminum alloy frame with high overall strength and reliability;
- The screw connection method is easy to assemble and is more lenient to the installation conditions;
- Outstanding color matching, highly recognizable in the installation environment;
- There are two directions of left and right opening, choose as needed;

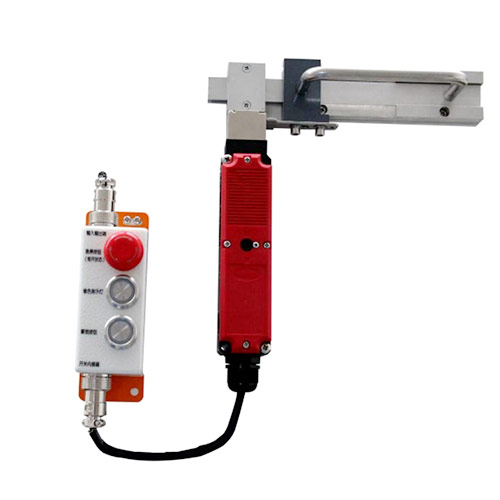

- Matching control box independent control function module.
Functional Description
This safety door switch protects people and equipment. It can be used on its own (door lock function only) or in conjunction with a wide range of safety door switches, making it easy to realize the optimal solution for different scenarios. When the door opens, the mechanism and the safety door switch synchronize their movements to issue a stop command, reducing the risk factor.
The risk factor determines the level of the safety control factor, and different matching safety door switches are selected according to the different levels.

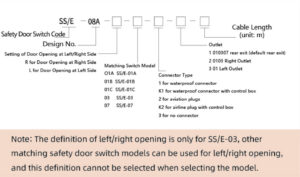

Model Description
Contact Capacity
| Rated voltage | 30V | 250V | ||
| Rated current | AC | Resistive load (AC-12) | / | 4A |
| Inductive load (AC-15) | / | 2A | ||
| DC | Resistive load (DC-12) | 2A | 0.8A | |
| Inductive loads (DC-13) | 1A | 0.4A |
Solenoid Coil
| Rated voltage | DC24V | +10%
-15% |
| Rated current | 0.4A | |
| Insulation class | Level B | |
Performance Specifications
| Production standard | Safety door switches* |
| Operating environment | Better than pollution level 3 |
| Ambient temperature | -5~40℃ |
| Relative humidity | 45~80% |
| Protection class | IP67 (without induction port) |
| Mechanical service life | Not less than 1 million times |
| Electrical service life | Not less than 100,000 cycles (AC-12 250V 4A) |
| Not less than 1 million times (24V AC/DC 100mA) | |
| Tensile strength |
Product Certification
High quality product certification
SHANSEN boasts a comprehensive management system. The company implements 6S management in the workshops and has obtained certifications for the ISO 9001 Quality Management System, ISO 14001 Environmental Management System, and ISO 45001 Occupational Health and Safety Management System.
Service project information
SHANSEN Service Industry
The products are mainly used in the fields of CNC machine tool industry, robot industry, injection molding machinery industry, textile machinery, woodworking machinery, etc.
Production Support
The company operates multiple production lines, including CNC system assembly lines, SMT production lines, and robotic welding platforms.
Experimental Setup
Shansen CNC has a provincial engineering laboratory, and each product of the company undergoes rigorous testing and inspection.
