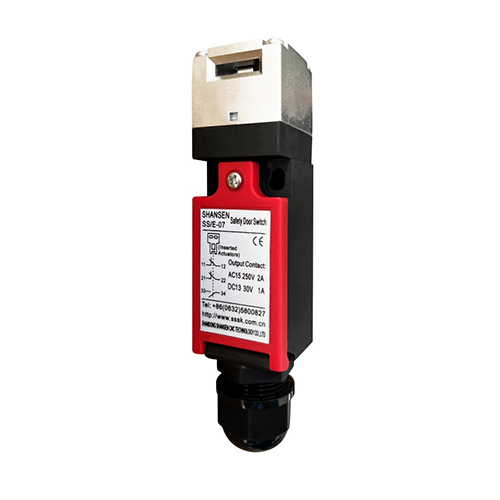

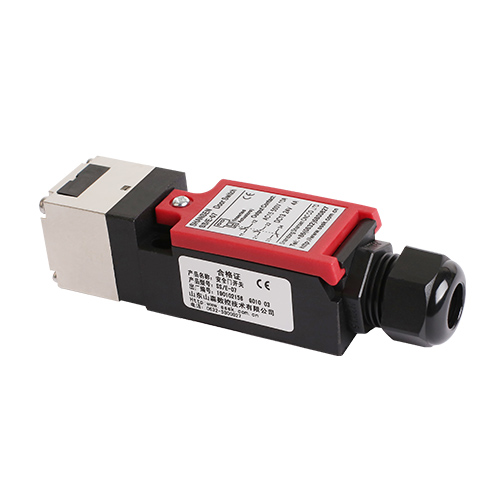

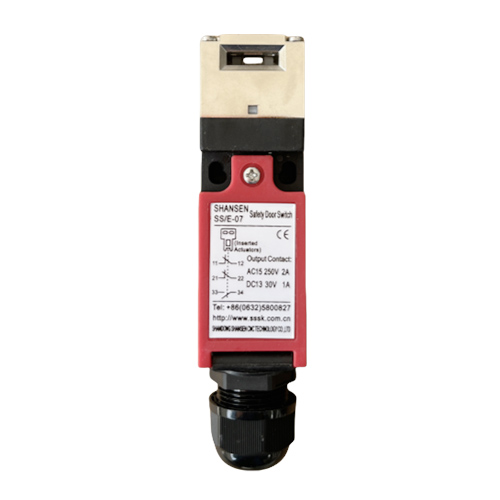

Safety Door Switch SS/E-07
Characteristics
- Small body for narrow installation space.

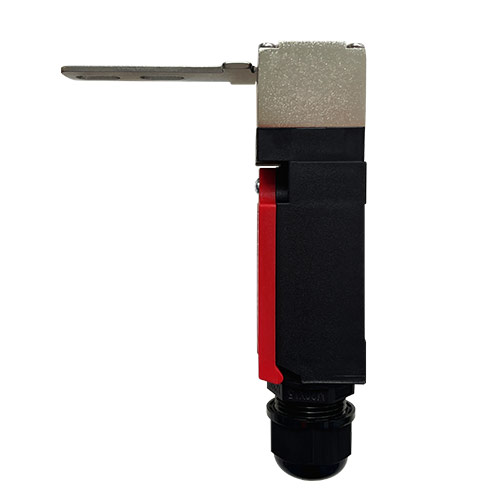

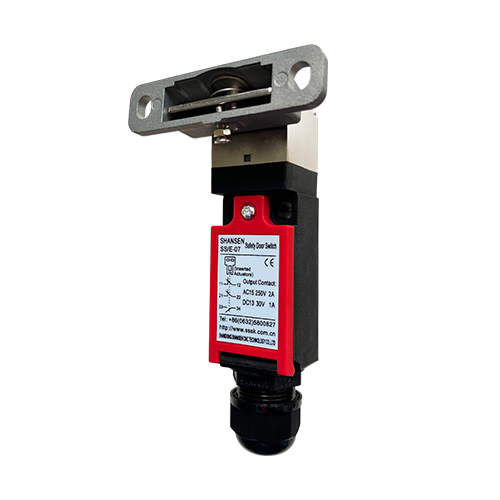

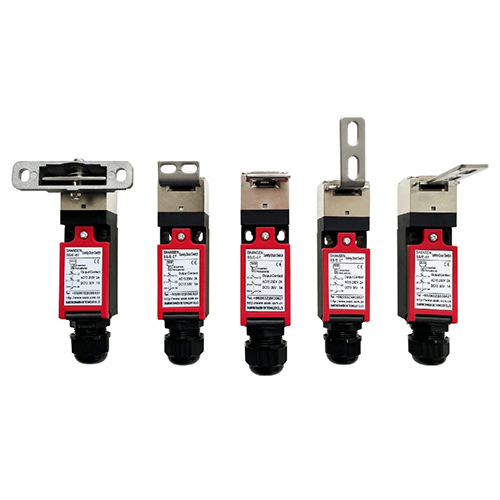

- Metal switch head for 4-direction adjustment.
- Built-in 3 sets of contacts, can complete a variety of wiring methods.
- The standardized contacts ensure high reliability of contact.
Functional Description
There is no locking function for the Safety door, and the contact switch signal is used to detect whether the Safety door is closed or not, to determine whether the equipment can be opened.
Model Description
| Dynamic Action And Circuit Diagram | ||
| Action State | State 1 | State 2 |
| •Door Closed •Equipment running |
•Door Closed •Equipment stops |
|
| Safety door status diagram |
 |
 |
| Wiring diagram |  |
 |
Performance Specifications
| Production standard | T/SDMTGM0007-2020 |
| Operating environment | Better than pollution level 3 |
| Ambient temperature | -5~40℃ |
| Relative humidity | 45~80% |
| Protection class | IP67 (without induced port) |
| Mechanical service life | Not less than 1 million times |
| Electrical service life | Not less than 100,000 cycles (AC-12 250V 4A) |
| Not less than 1 million times (24V AC/DC 100mA) | |
| Tensile strength | None |
Product Certification
High quality product certification
SHANSEN boasts a comprehensive management system. The company implements 6S management in the workshops and has obtained certifications for the ISO 9001 Quality Management System, ISO 14001 Environmental Management System, and ISO 45001 Occupational Health and Safety Management System.
Service project information
SHANSEN Service Industry
The products are mainly used in the fields of CNC machine tool industry, robot industry, injection molding machinery industry, textile machinery, woodworking machinery, etc.
Production Support

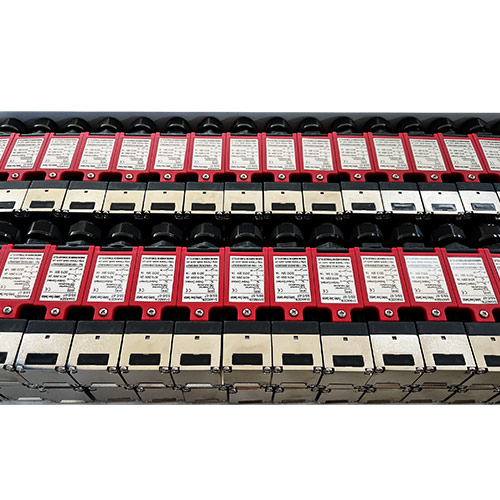

The company operates multiple production lines, including CNC system assembly lines, SMT production lines, and robotic welding platforms.
Experimental Setup
Shansen CNC has a provincial engineering laboratory, and each product of the company undergoes rigorous testing and inspection.
