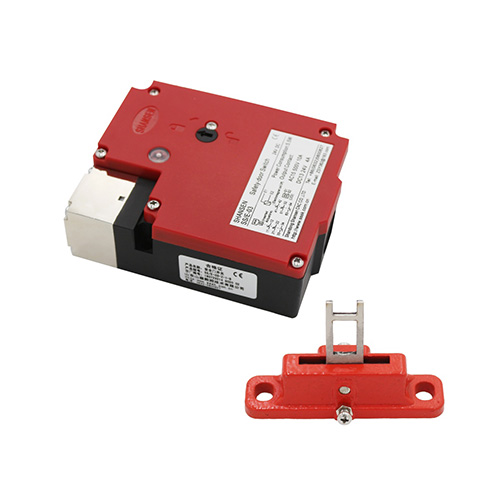

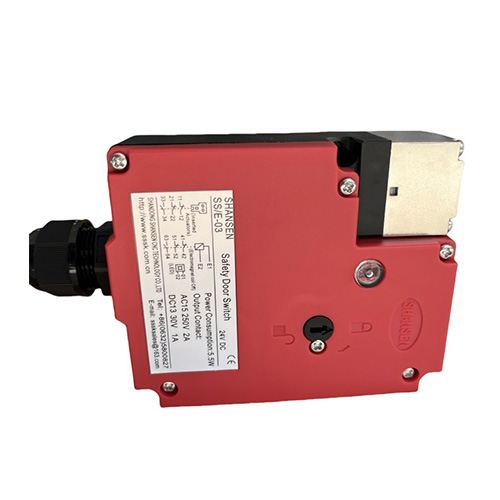

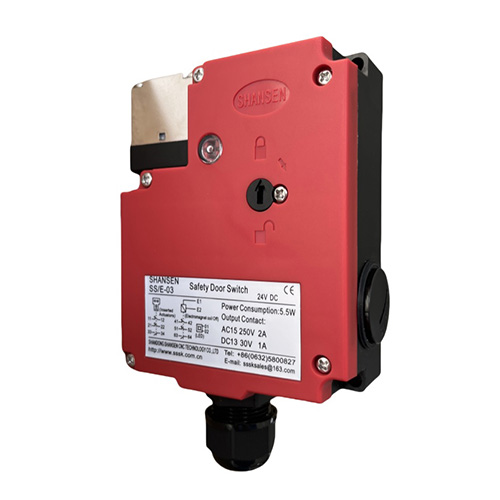

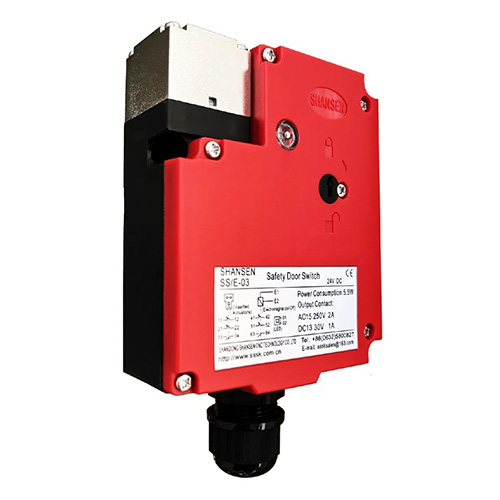

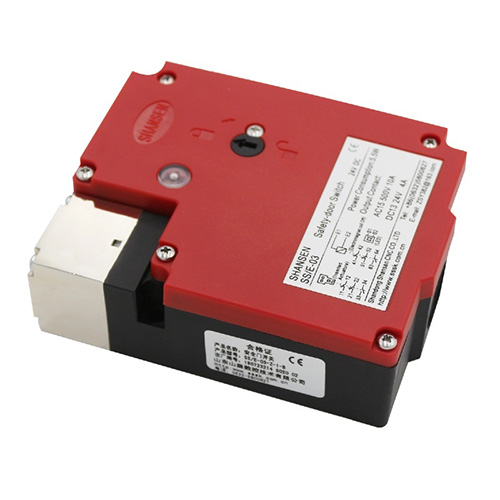

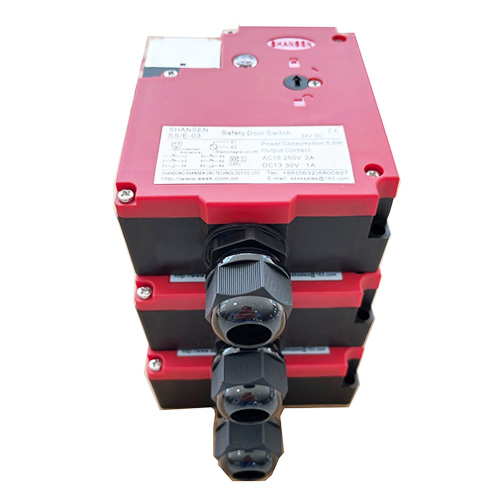

Safety Door Switch SS/E-03
Characteristics
- Square shape structure
- Metal switch head for 4-way adjustment
- Spring force for unlocking by solenoid coil excitation
- Assisted unlocking mechanism as standard
- Independent circuits of indicator lights can respond to a variety of uses

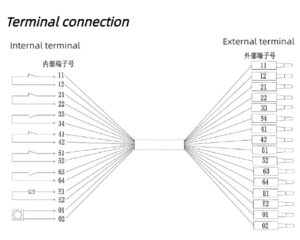

- Built-in 6 groups of contacts, can complete a variety of wiring methods

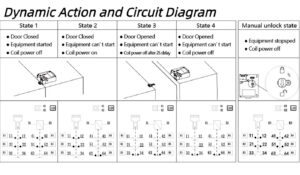

- Locking Method-Energized Unlocking
Contact Capacity
| Rated voltage | 30V | 250V | ||
| Rated current |
AC |
Resistive load (AC-12) | – | 4A |
| Inductive load (AC-15) | – | 2A | ||
|
DC |
Resistive load (DC-12) | 2A | 0.8A | |
| Inductive loads (DC-13) | 1A | 0.4A | ||
Solenoid Coil
| Rated voltage | DC24V | +10%
-15% |
| Rated current | 0.4A | |
| Insulation class | Level B | |
Performance Specifications
| Production standard | t/sdmtgm0007-2020 |
| Operating environment | Better than pollution level 3 |
| Ambient temperature | -5~40℃ |
| Relative humidity | 45~80% |
| Protection class | IP67 (without induction port) |
| Mechanical service life | Not less than 1 million times |
| Electrical service life | Not less than 100,000 cycles (AC-12 250V 4A) |
| Not less than 1 million times (24V AC/DC 100mA) | |
| Tensile strength | 2700N |
