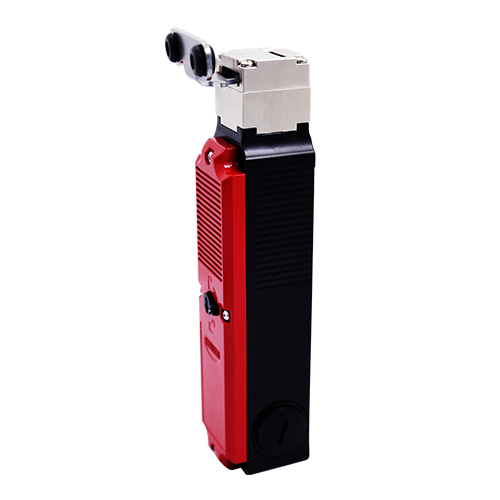

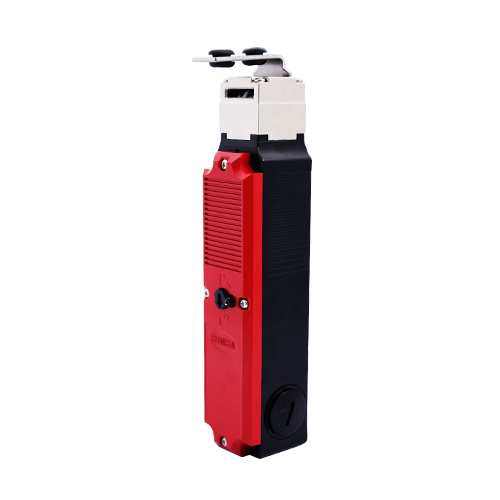

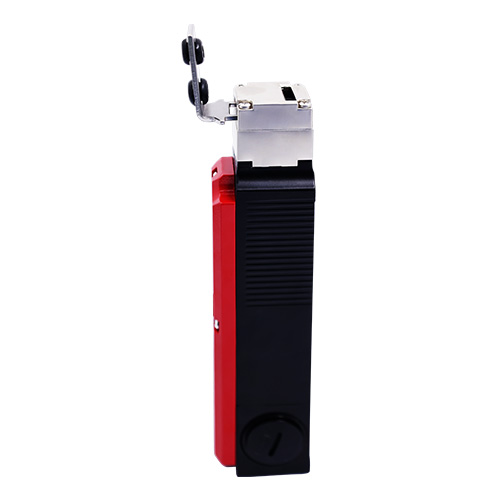

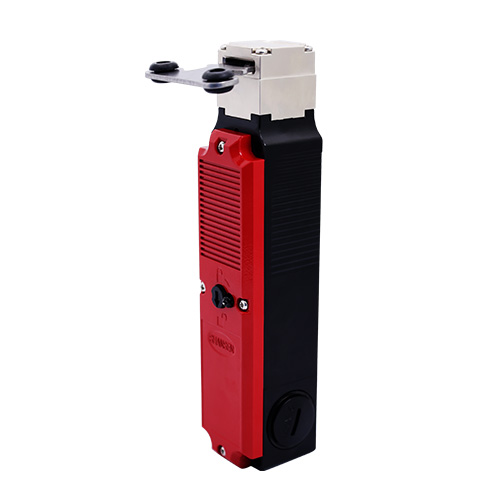

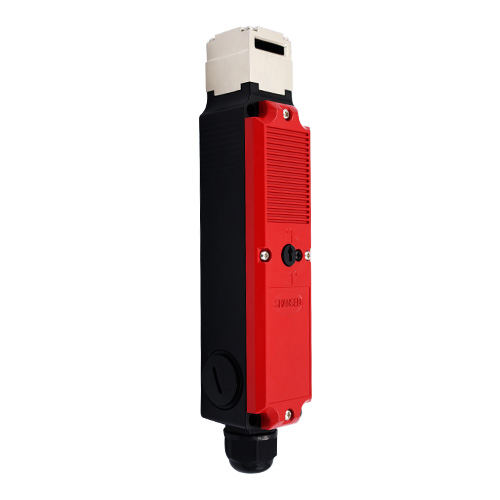

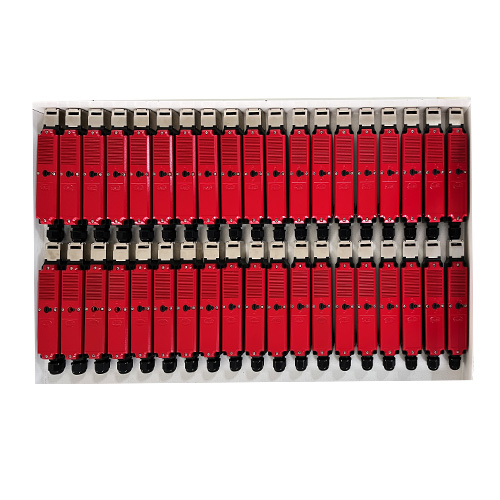

Safety Door Switch SS/E-01B
Characteristics
- All-metal composition, head can be adjusted in 4 directions
- 5 types of pins available
- With manual unlocking mechanism
- Increase the number of contact groups to 4 groups
- Outlet method is optional in 3 directions.
- Locking Method-Energized Unlocking

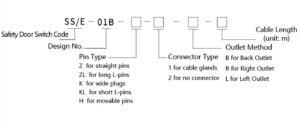

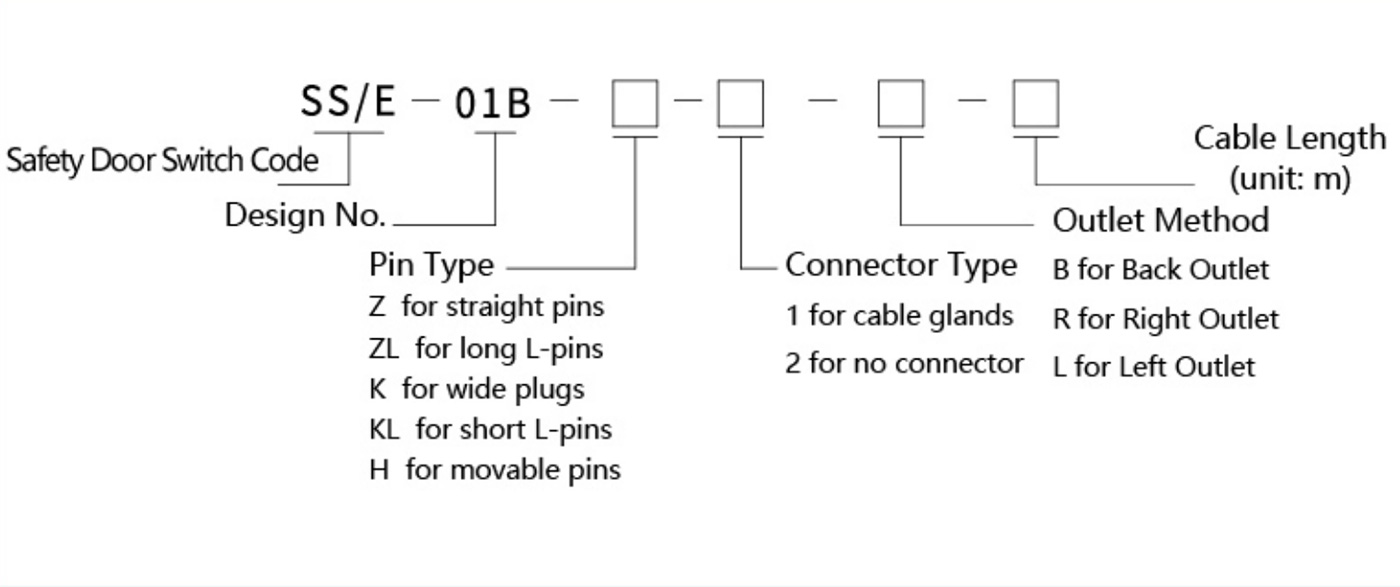

Model Description

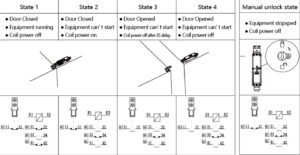

Dynamic action and circuit diagram
Contact Capacity
| Rated voltage | 24V | 230V | |
| Rated current | Inductive load (AC-15) | 4A | – |
| Inductive loads (DC-13) | – | 4A | |
Solenoid Coil
| Rated voltage | DC24V | +10%
-15% |
| rated current | 0.31A | |
| Insulation class | Level B | |
Performance Specifications
| Production standard | t/sdmtgm0007-2020 |
| Operating environment | Better than pollution level 3 |
| Ambient temperature | -5~40℃ |
| Relative humidity | 45~80% |
| Protection class | IP67 (without induction port) |
| Mechanical service life | Not less than 1 million times |
| Electrical service life | Not less than 100,000 cycles (AC-12 250V 4A) |
| Not less than 1 million times (24V AC/DC 100mA) | |
| Tensile strength | 2500N |
