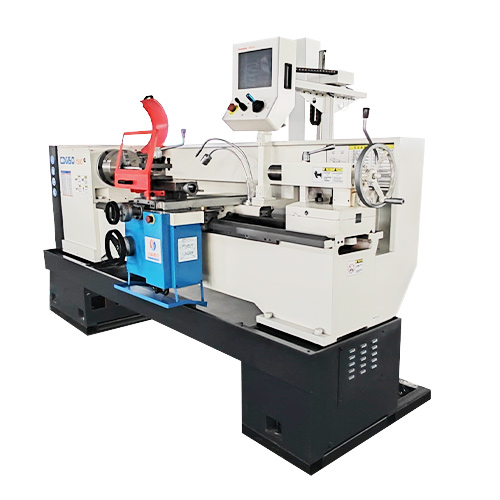

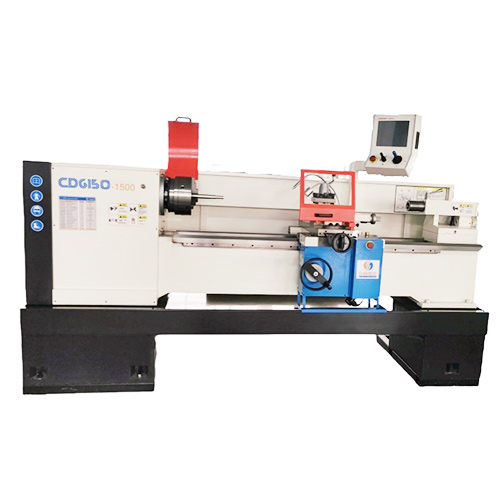

CD-6150-1500
- Save 10% cost than ordinary lathe
- It takes 3years to learn to operate ordinary lathe, but it takes only 3 minutes to learn electric lathe.
- Compared with the ordinary lathe, the performance of the electric lathe has been greatlyimproved, capable of turning threads of any pitch, and realizing cylindrical cycle cutting,thread cycle machining, fixed-length machining and so on.
- Pitch feed, processing length, cutting speed, spindle speed, etc. can be set arbitrarily, withoutexchanging gears.
Brief Introduction of Shansen CNc Technology Co., Ltd.
Shansen CNC Technology Co., Ltd. founded in 2001, is now the national specialized and innovative “little giant” enterprise, vice chairman unit of CNC system branch in China Machine Tool& Tool Builders’ Association, and chairman unit of Tengzhou City Machinery Industry Association. The group has two factories, covers an area of 180 acres and a building area of 100,000 square meters. After ten years of research and development, the company has developed the newest product to replace the ordinary lathe – electric lathe, which is expected to completely replace the ordinary lathe in the world in the next 5-10 years.
Product Introduction

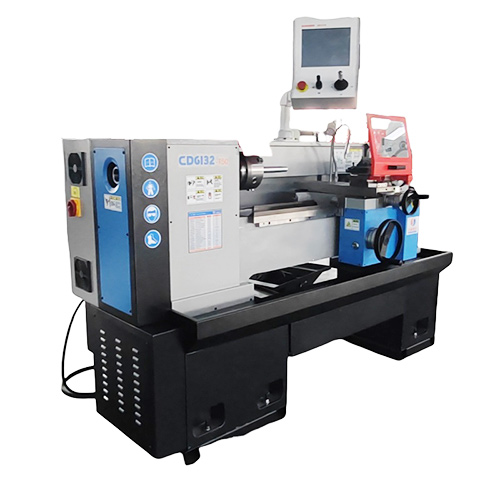

CD6140 and CD6150 electronic lathes are two specifications in our company’s electronic lathe series. They are new products independently developed by the company with independent intellectual property rights and are substitutes for ordinary lathes. Through electromechanical coordination, they can easily complete the processing of internal and external cylindrical surfaces, conical surfaces, end faces and various threads, etc. They are suitable for machining, tool manufacturing, equipment maintenance and mass production workshops.
Parameter
| Items | Parameter | Unit | CD6140 | CD6150 | CD6132 |
| capacity | Swing over bed | mm | 400 | 500 | 330 |
| Swing over cariage | mm | 230 | 290 | 160 | |
| Center height | mm | 220 | 250 | 175 | |
| Max. workpiece length | mm | 1000/1500/2000 | 1000/1500/2000/3000 | 750 | |
| Max. processing length | mm | 950/1450/1950 | 950/1450/1950/2920 | 750 | |
| Bed width | mm | 400 | 400 | 295 | |
| Spindle | 3-jaw chuck diameter | mm | 200 | 250 | 160 |
| Speed Gear | Stepless | Stepless | Stepless | ||
| Speed ranges | rpm | 20-2000 | 16-1600 | 20-2600 | |
| Spindle bore | mm | 58 | 82 | 43 | |
| Spindle taper | mm | MT 6 | Metric 90 | MT 5 | |
| Spindle nose | C6 | C8 | C5 | ||
| Slides | Top slide travel | mm | 150 | 150 | 65 |
| Cross travel(X axis) | mm | 260 | 260 | 190 | |
| Longitudinal travel(Z axis) | mm | 1000/1500/2000 | 1000/1500/2000/3000 | 750 | |
| Toolpost | Number of stations | 4 | 4 | 4 | |
| Tool shank size | mm | 25X25 | 25X25 | 16 | |
| Tailstock | Movement | Manual | Manual | 手动 | |
| Quill travel | mm | 160 | 160 | 130 | |
| Quill diameter | mm | 75 | 75 | 60 | |
| Quill taper | MT5 | MT5 | MT4 | ||
| Feed | Rapid (Z/X axes) | mm/min | 3000/1500 | 3000/1500 | 3000/1500 |
| X Cross feed (X axis) | mm/min | 15-1500 | 15-1500 | 15-1500 | |
| Z Longitudinal feed (Z axis) | mm/min | 30-3000 | 30-3000 | 30-3000 | |
| Movement per rotation/grade of top slide handwheel | mm/mm | 5/0.1 | 5/0.1 | 3/0.03 | |
| Movement per rotation/grade ofcross slide handwheel (Xaxis) | mm/mm | 5/0.02 | 5/0.02 | 5/0.05 | |
| Movement per rotation /grade oflongitudinal slide handwheel (Z axis) | mm/mm | 30/0.1 | 30/0.1 | 25/0.1 | |
| Threads | Metric threads | mm | 0.25-24 | 0.25-24 | 0.25-24 |
| Inch threads | in | 0.01-1 | 0.01-1 | 0.01-1 | |
| Modular threads | mm | 0.08-8 | 0.08-8 | 0.08-8 | |
| Diametrical threads | in | 0.01-0.32 | 0.01-0.32 | 0.01-0.32 | |
| Motor | Servo spindle motor | kw | 5.5 | 7.5 | 3.7 |
| Drive belt | Module | XPA2282 | XPA2282 | XPA1882 | |
| Quantity | Pcs | 5 | 5 | 4 | |
| Others | Length | mm | 2430/2930/3430 | 2430/2930/3430/4430 | 1900 |
| Width x Height | mm | 1145×1740 | 1145×1740 | 850×1650 | |
| Weight | kg | 2060/2210/2360 | 2130/2280/2430/2880 | 1260 |
